ARB Bull Bars
Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.
ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

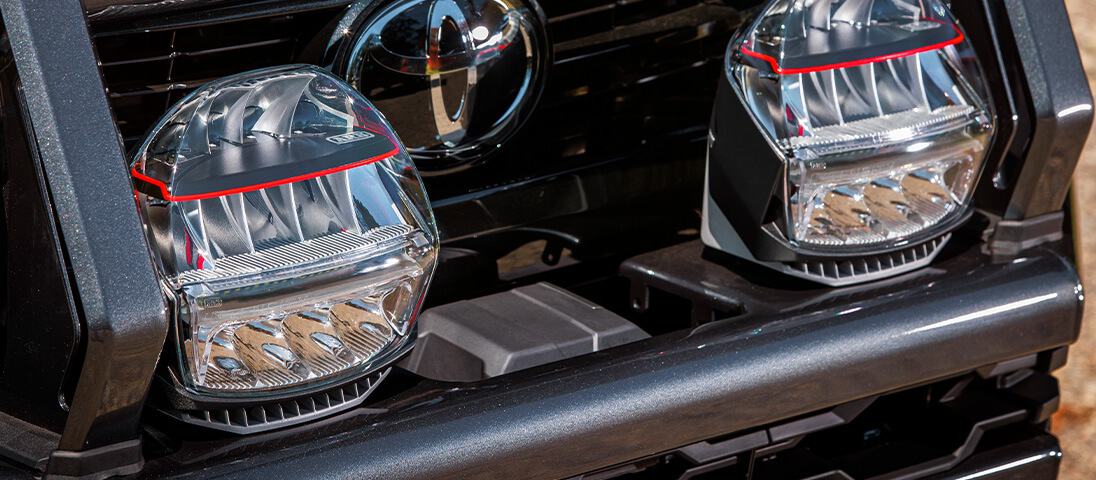

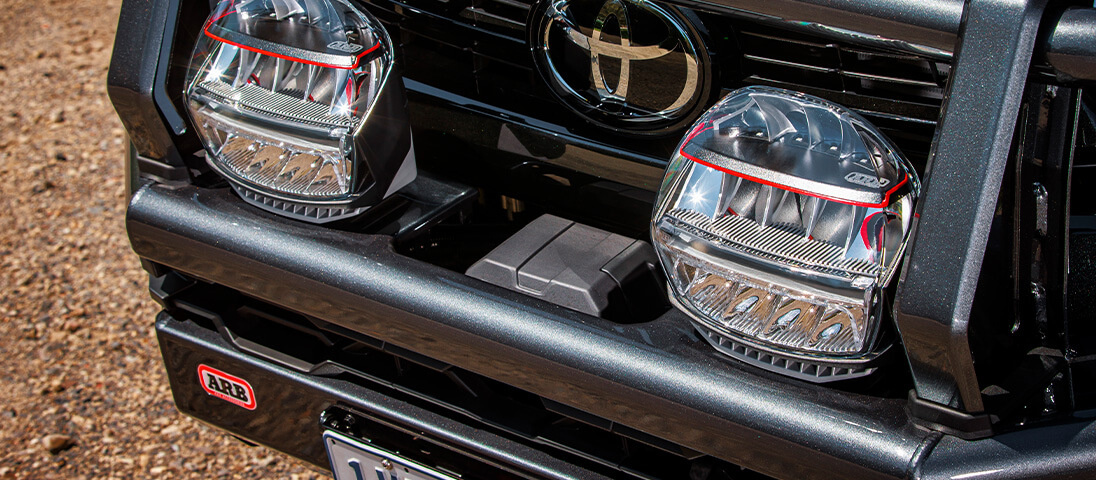

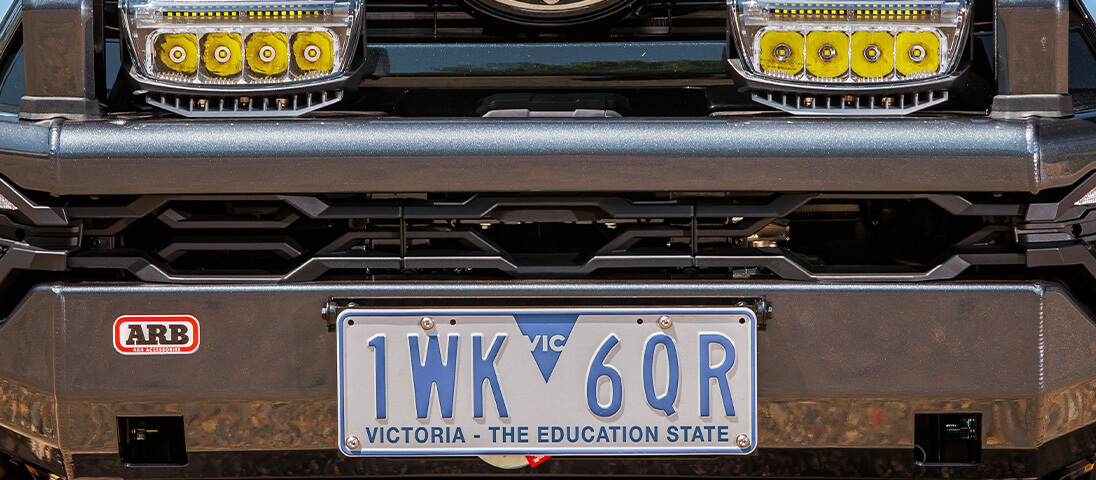

Summit MKII Bull Bar
The ARB Summit MKII Bar Is now released for the ever-popular Toyota Hilux and has been designed to be fully integrated with Toyotas Intelligent safety technology better known as Safety Sense. Panoramic View Monitor is supported by a camera relocation kit and is an available option for variants that specify the 360-degree view front facing camera.
The state-of-the-art Summit MKII Bar takes key components of its flagship namesake and kicks It up a notch with an ultra-modern design that’s constructed to turn heads.
Summit MKII has eliminated front buffers and now features robot welds on the front face of the bar to highlight ARB’s excellence in sheet metal fabrication.
Fog light design has been significantly updated to include a plug and play indicator / clearance light / Daytime Running Light and fog light within one complete unit for an integrated approach to incorporate these requirements on modern vehicles.
Features
- Vehicle specific design suitable for the Toyota Hilux
- Registered design of styling and design components
- Durable steel construction for maximum protection
- Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle
- 30mm radius on wings and centre section
- 60.3mm outer frames and centre cross tube
- Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts
- Split pan design for maximum strength and airflow
- Extensive protection panels on centre and either side
- Pressed form top pan and aluminium (powder coated matt black) winch cover panel
- Twin ARB Jack or Hi-Lift jack points located in the lower pan
- Two aerial brackets located on the centre frame
- Optional Roller Fairlead Cover, matt black 3501070
- Optional Camera Relocation kit, required on models with forward facing camera 3514140
- Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 10,000lb
- Provision to accommodate ARB Intensity, Intensity IQ and Solis LED’s and a range of Bushranger and IPF lights
- Includes ARB LED Fog Light, LED Daytime Running Light and LED indicators and clearance lights
- Compatible with original equipment safety features
- Bar adds approximately 184mm to the overall length of the vehicle
- Approximate weight of the bar, chassis mounts and fitting kit is 87kg. Approximately 13kg is removed from the vehicle for fitment of the bar
- Metaprep primer for additional corrosion resistance
Summit Bull Bar
The Summit bull bar builds on the renowned ARB Deluxe bar architecture, and integrates a fresh and contemporary design language to complement modern vehicles.
Available for the wide body Toyota HiLux 08/20 SR/SR5 (06/20 build), Summit bars are winch compatible and provide next-generation protection and styling for your vehicle. Laser-cut holes for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED clearance and indicator light assembly is included as standard.
Supplied in a durable matte black powder coat finish, colour coding is available as an option for a fully integrated look.
Note: Bar shown with optional fog light kit.
Features
- Vehicle specific design for the wide body Toyota HiLux SR and SR5 from 08/20 (06/20 build)
- Durable steel construction for maximum protection
- Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
- 30mm edge radius on wings and centre section
- Engineered, airbag compatible mounting system secures to chassis via high tensile bolts
- Split pan design for maximum strength and airflow
- 3 piece grille design for split pan
- Extensive under protection panels on the centre and either side
- Pressed form top pan and aluminium (powder coated black) winch cover panel
- Twin ARB JACK or Hi-Lift jack points located below each buffer for optimum strength
- Durable two piece buffers
- Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 10,000lb
- Provision to accommodate ARB Intensity LEDs and a range of IPF and Bushranger driving lights
- Provision for ARB fog lights (additional parts required)
- Provision for optional ARB fog light cover
- Provision for optional Summit Roller Fairlead cover
- Provision for OE front parking sensors
- Includes ARB LED indicator & clearance light
- Two antenna mounts located on the top of the centre tube
- Corrosion-resistant primer
- Finished in a matte black powder coat, colour coding is available as an option for a fully integrated look
Summit Sahara Bar
With a more low profile design, the Toyota HiLux SR/SR5 Sahara bar provides an alternative look to the range of Deluxe bull bars, whilst retaining many of the strength and protection features.
Offering significantly greater protection than the factory bumper, the Sahara bar is available with or without the polished centre tube and can accommodate a selection of Warn, Magnum and Bushranger low mount winches.
The Summit Sahara is designed to suit HiLux SR/SR5 from 08/20 (06/20 build) wide body models.
Optional fog lights and colour coding can also be specified.
Note: image features Summit Sahara tube with LED Light Bar (optional).
Features
- Vehicle specific design to complement Toyota HiLux SR/SR5 wide model body from 08/20 (06/20 build)
- Durable steel construction for maximum protection
- Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle
- 30mm radius on wings and centre section
- Split pan design for maximum strength and airflow
- Three-piece grille design for split pan
- Extensive protection panels on the centre and either side
- Pressed form top pan and aluminium (powder-coated matte black) winch cover panel
- Engineered, airbag compatible mounting system secures to chassis via high tensile bolts
- Bar can be configured with or without centre tube
- Will accommodate Warn, Magnum and Bushranger low mount model electric winches up to 10,000lb
- Summit Sahara Tube LED light bar optional
- Twin ARB JACK or Hi-Lift jacking points located beneath each buffer for optimum strength
- Provision to accommodate ARB Intensity and Intensity Solis LEDs, as well as a range of IPF and Bushranger driving lights
- Provision for ARB fog lights.
- Provision for optional ARB fog light covers
- Provision for optional Summit Sahara roller fairlead cover.
- Includes ARB LED indicator and clearance light
- Durable two-piece buffers
- Provision on centre pan for aerial fitment if no centre tube is fitted
- Corrosion resistant primer
- Supplied in a matte black powder coat finish, colour coding is available as an option for a fully integrated look
Summit Sahara Tube with LED Light Bar
Available for the Toyota HiLux SR/SR5 2020 on and finished in a stealthy Integrit™ textured black powder coat, the Summit Sahara tube with Light Bar features 10x integrated 20” OSRAM LED lights to illuminate the road ahead in a variety of driving conditions.
The tube’s aluminium body and high-pressure die-cast aluminium end caps enable heat dissipation for added longevity to the LEDs, while a light tint added to the polycarbonate lens ensures a non-obtrusive look. Manufactured from extruded aluminium for superior strength, the light bar’s turned reflectors create a defined beamline that’s specifically designed as a spot/flood combination to complement the OE headlight light spread; providing up to 445m @ 1 Lux and up to 44m spread of light.
Features
- Unique reflector design to provide good distance and width for highway driving
- Virtually indestructible hardened polycarbonate lens
- Extruded aluminium body finished in black powder coat
- Comes pre-assembled in Summit Sahara tube. Vertical adjustment provided via the rear of the tube
- Additional openings allow airflow over and around the LED light bar
- Over and under voltage protection
- Reverse polarity protection
- Breather with pressure-tested seal
- Vibration and UV tested
- Thermal management
- Dust and waterproof to IP68
- Protected against radio frequency (RFI) and electromagnetic (EMC) interference
- Tube finished in Integrit™ textured black powder coat
- Requires ARB wiring loom (3500810) for fitment
-
View technical specifications
Input 12V to 48V Power 55W LEDs 10x OSRAM 6.5W Current draw 4.0A @ 14.2V Output (RAW) 4081 lumens Output (Effective) 3866 lumens 1 Lux at 445m Spread Horizontal 8° and Vertical 6° Input cable length 550mm Total measurement 494.4 x 35 x 67mm LED light bar weight 1.25kg Operating temperature -40°C to +85°C Colour temperature 5500-6500K Runtime life 50,000hrs Connector pin 2 pin DT – over moulded waterproof plug Certifications R10, R12, CE and ROHS Warranty 3 years
Commercial Bull Bar
Incorporating many of the strength related features the Deluxe bull bar, the Commercial bar provides considerable frontal protection but achieves cost savings through a simplified manufacturing process.
ARB’s Commercial bar for the Toyota HiLux SR/SR5 06/20 wide body build offers superior protection via its unique design, featuring heavy gauge steel tube for the centre and outer frame whilst forgoing a number of cosmetic features such as colour coding and urethane buffers.
The Commercial bar is available to suit the Toyota HiLux 06/20 model. Suited to winch and non-winch applications.
Features
- Vehicle specific design for the wide body Toyota HiLux 06/20+ build
- Durable steel construction for maximum protection
- 60.3mm outer tube and 76.1mm centre tube
- Engineered, airbag compatible mounting system secures to chassis via high tensile bolts
- Split pan design for maximum strength and airflow
- Extensive steel protection panels on centre and either side
- Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 10,000lb. A separate winch installation kit is required.
- Combination style bar to suit both winch and non-winch applications
- Provision to accommodate ARB Intensity LEDs, and a range of IPF and Bushranger driving lights
- Provision for optional ARB fog lights
- Includes ARB LED indicator and clearance light
- Two antenna brackets located on the top of the centre tube
- Twin ARB JACK or Hi-Lift jack points located in the lower pan
- Corrosion-resistant primer
- Finished in a matte black powder coat, with the option to colour code to vehicle colour
StealthBar
Specifically designed for the Toyota HiLux, the latest model of the Vehicle Frontal Protection System blends seamlessly to the contours of the vehicle, maintaining the intended aesthetics of the Toyota design while providing unparalleled safety.
The StealthBar is suitable for both SR and SR5 models, and maintains the full Hilux safety system and drivers aids such as Lane Departure Assist and Lane Tracing (LDA), Pre-Collision System (PCS), Road Sign Assist (RSA) and Dynamic Radar Cruise Control (Adaptive Cruise) (DRCC).
Features
- Proudly Australian Made
- Weight savings provides improved fuel economy and reduced tyre, suspension and brake wear
- Superior frontal protection due to the impact absorbing hollow construction
- UV stabilised polymer for durability
- Compatible with original Toyota front parking sensors and Toyota Safety Sense Technology
- Styled to maintain the vehicle’s aesthetics
- Antenna mount location on top of the accessory bracket
- Compatible with ARB UVP
- Compatible with ARB Recovery Points
- ARB JACK and Hi-Lift Jack point (Winch Only)
- Minimal maintenance
- Manufactured from environmentally friendly, recyclable polyethylene polymer
- Available in black as standard
- Accommodation for a large range of spotlights
- Accommodates up to 10,000lb winch
Bull Bar Production Steps
Laser Cutting
Every bull bar starts its life as a flat sheet of steel. Individual components are cut to shape using ARB’s state of the art, computer aided laser cutters which can cut to a tolerance of just 0.2mm with no heat distortion, resulting in superior surface finishes and accuracy.
Folding
Individual components are then folded to make up the sections of the bull bar using a Computer Numerically Controlled (CNC) machine which ensures maximum accuracy and consistency. Most bull bars utilise ARB’s five fold design, with each fold providing additional strength.
Tube Work
ARB bull bars are made with strong, 2.6mm wall thickness tubing. The tube is cut to the desired length and bent with a CNC Eagle internal mandrel bender ensuring consistency, accuracy and an even wall thickness across all sections.
Robot Welding
Once folded, each section is welded utilising a robot welder. Robot welders are used for straightforward, repetitive welding jobs that require deep penetration, speed and accuracy.
Assembly
When individual components are complete, the bull bar is assembled. All sections including pan, wing, uprights, outer frame and chassis brackets are placed in a jig and tack welded. This is followed by finish welding and grinding for strength and aesthetics. Jigs are assessed regularly to ensure accuracy.
Post Assembly
To complete the manufacturing process all ARB bars are shot blasted, before entering a 5 stage chemical wash to prepare the surface for maximum powder adhesion. They’re then powder coated and oven baked to ensure a rich and durable finish. As well as being an attractive and durable finish, power coating provides an excellent base for painting if colour coding is required.
