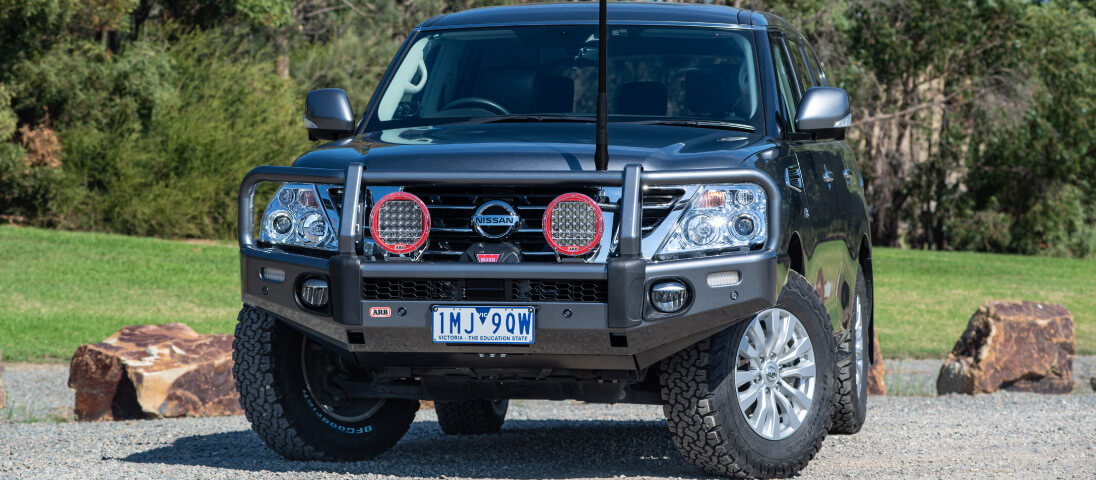

ARB Bull Bars

Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.

ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

Features

  • Vehicle specific design to complement the Y62 and maximise functionality
  • Durable steel construction for maximum protection
  • Fully compatible with Nissan’s Forward Collision Warning System

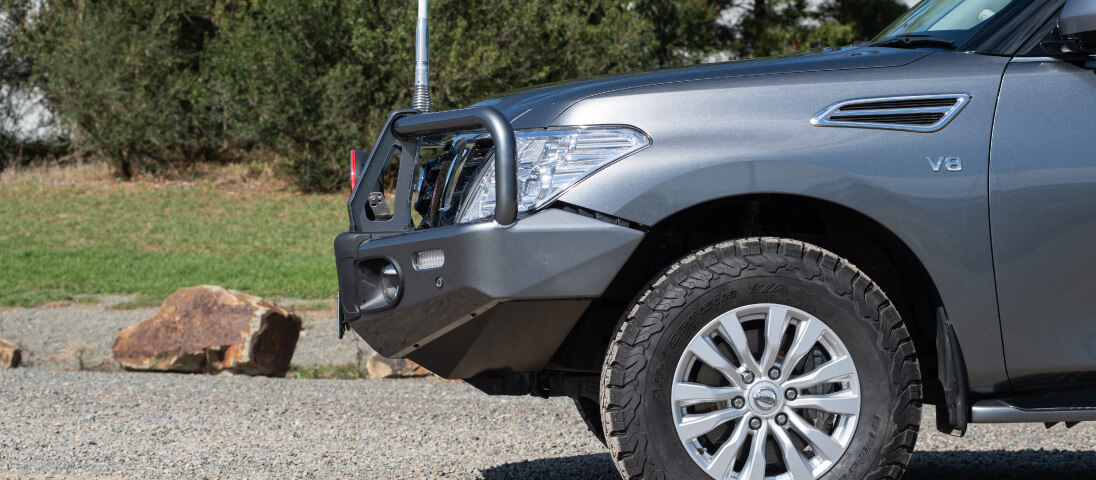

  • Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
  • Engineered, air bag compatible mounting system
  • Pressed form top pan and aluminium Winch cover panel
  • Protection panels on centre and either side
  • 3 piece grill for split pan
  • Corrosion resistant primer

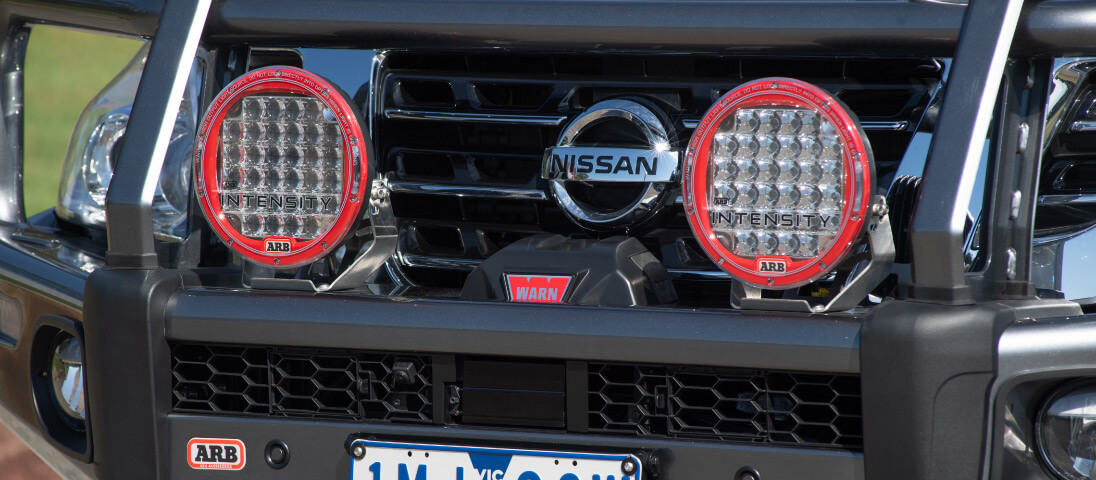

  • Provision to accommodate ARB Intensity LED, and a range of IPF and Bushranger driving lights
  • Provision for optional ARB Fog Light kit
  • Includes ARB LED Indicator and Clearance light
  • Durable two-piece buffers
  • Twin ARB Jack or Hi-Lift jacking points located beneath each buffer
  • Retains original equipment tow point
  • Two CB aerial brackets located in the centre top tube
  • 30mm radius on wings and centre section
  • Supplied in a durable black powder coat finish, colour coding is available as an option for a fully integrated look

Bull Bar Production Steps

Laser Cutting

Laser Cutting

Every bull bar starts its life as a flat sheet of steel. Individual components are cut to shape using ARB’s state of the art, computer aided laser cutters which can cut to a tolerance of just 0.2mm with no heat distortion, resulting in superior surface finishes and accuracy.

Folding

Folding

Individual components are then folded to make up the sections of the bull bar using a Computer Numerically Controlled (CNC) machine which ensures maximum accuracy and consistency. Most bull bars utilise ARB’s five fold design, with each fold providing additional strength.

Tube Work

Tube Work

ARB bull bars are made with strong, 2.6mm wall thickness tubing. The tube is cut to the desired length and bent with a CNC Eagle internal mandrel bender ensuring consistency, accuracy and an even wall thickness across all sections.

Robot Welding

Robot Welding

Once folded, each section is welded utilising a robot welder. Robot welders are used for straightforward, repetitive welding jobs that require deep penetration, speed and accuracy.

Assembly

Assembly

When individual components are complete, the bull bar is assembled. All sections including pan, wing, uprights, outer frame and chassis brackets are placed in a jig and tack welded. This is followed by finish welding and grinding for strength and aesthetics. Jigs are assessed regularly to ensure accuracy.

Post Assembly

Post Assembly

To complete the manufacturing process all ARB bars are shot blasted, before entering a 5 stage chemical wash to prepare the surface for maximum powder adhesion. They’re then powder coated and oven baked to ensure a rich and durable finish. As well as being an attractive and durable finish, power coating provides an excellent base for painting if colour coding is required.
