THE ULTIMATE IN OUTDOORS.

Being such an innvotive and complete product, the Earth Camper is the ultimate in outdoors. Features included with this product are endless, we’ve thrown absolutely everything into this living solution that you could possibly need (yes, even the kitchen sink).

Discover the potential that you will have when adventuring the great outdoors with the help of this life-changing product.



Features

ARB AWNING

Equipped with a freestanding ARB Awning, poles included for windy and overnight use and an inbuilt LED ambient light for those late nights.

ARB AWNING

Equipped with a freestanding ARB Awning, poles included for windy and overnight use and an inbuilt LED ambient light for those late nights.

SLIDE KITCHEN

ARB Patented, full size & freestanding Slide Kitchen comes equipped with a huge stainless steel bench space which remains available while cooking, as well as a 3-burner cooktop with included wind deflector, and an integrated sink with tap.

LEARN MORE

96L ARB ZERO DUAL ZONE FRIDGE/FREEZER

Included as standard is a giant 96L ARB ZERO dual zone fridge/freezer, ensuring your supplies on the road are kept cool and secure.

LEARN MORE

Midge-proof Mesh

Midge-proof mesh is designed to restrict insects from penetrating inside your home.

280GSM CANVAS

Canvas is made from 280GSM, which along with breathability, this canvas also offers good insulation and has good UV resistance.

PUSH BUTTON REAR DOOR

With extensive testing, the Earth Camper rear door design provides an innovative & robust entry to the inside of the camper via the push of a button.

KITCHEN STORAGE

Keep your supplies together and locked away, with the Earth Camper’s sliding, lockable pantry drawer and top shelf.

FIRE EXTINGUISHER

For the rare emergency, the Earth Camper comes equipped with a 1kg ABE dry fire extinguisher.

DUAL GAS BOTTLES

Included with your Earth Camper are 2x 4kg gas bottles, representing weeks of off grid cooking & hot showers. The bottles fit neatly in the lockable gas bottle holder.

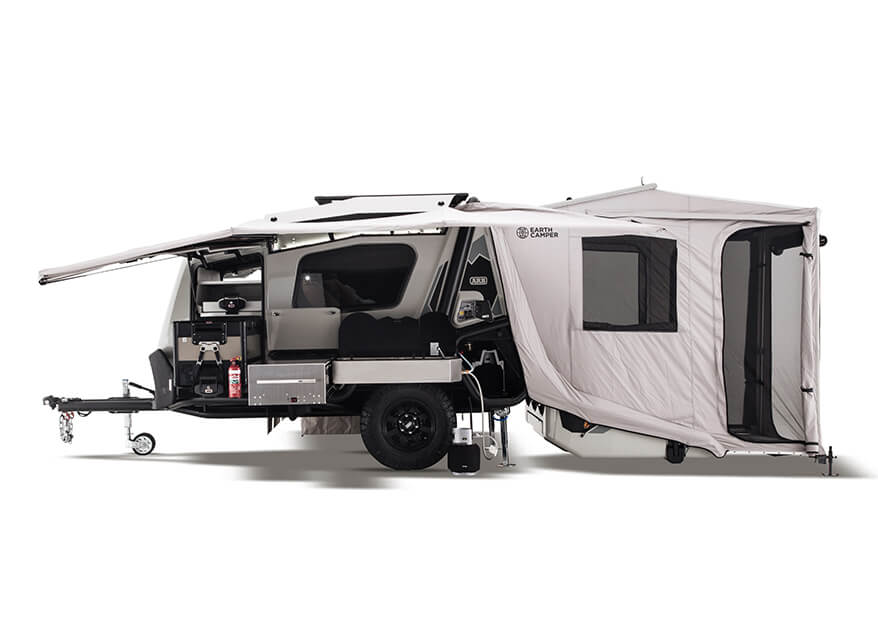

LIVING AREA

The Earth Camper once open comes with a spacious living area to enjoy meals and entertaining.

HARD FLOORING

The Earth Camper rear door transforms into a hard floor which is perfect for when you are using the space as a seating and eating area.

ONE-PIECE WELDED EXOSKELETON

With 90mm cylindrical, mandrel bent steel with a 3mm wall thickness, the Earth Camper’s exoskeleton is designed to keep the body safe.

ONE-PIECE WELDED EXOSKELETON

With 90mm cylindrical, mandrel bent steel with a 3mm wall thickness, the Earth Camper’s exoskeleton is designed to keep the body safe.

ARB BRANDED MUDFLAPS

Complete with a pair of ARB Mudflaps, rely on the toughened 8mm thick rubber to protect your camper from trail debris.

NEXT-LEVEL DRAWBAR DESIGN

The he drawbar comes complete with a Cruisemaster D035 hitch & handbrake, ARK XO extreme off road jockey wheel rated to 500kgs, 3500kg rated safety chain & G80 connector, as well as two ARK drop down stabiliser legs at the rear of the chassis.

EARTH CAMPER SIGNATURE WHEELS

With the special ARB ‘EC’ edition 16” alloy wheels wrapped in Maxxis Razr All Terrain tyres, the Earth Camper is set on a premium combination.

OPENING SIDE WINDOW

Ventilation to your sleeping space is simple via a wind-out opening side window protected by a removable flyscreen for any unwanted insect intruders.

REAR STORAGE LOCKER

Spacious, lockable rear wet storage locker is perfect for spare parts, tools, wetsuits or even firewood.

DUAL JERRY CAN STORAGE

Ensure you have always good for fuel or water when taking on the tracks with provision for two 20L jerry cans, that are also lockable to ensure your jerry cans are fixed.

SPARE TYRE COMPARTMENT

Housing the included 31" Maxxis Razr Spare, this side locker is another great general storage area or forms home to a number of accessories if desired; inverter, hot water kit, storage bags.

900MM EXTRA-LONG TRAILING ARM

By maximising the length of each trailing arm to 900mm, we were able to reduce strain in suspension components, extract greater wheel travel and ultimately provide a smoother ride and better traction.

STONE SHIELDS

Equipped with a stone shield at front, under centre & rear of the Earth Camper, you can count on maximum protection being provided to the body and paint.

UNDER VEHICLE PROTECTION (UVP) FOR CAMPER

ARB's Earth Camper is equipped with a pressed and folded 3mm steel UVP providing further protection to key areas. The UVP is also easily removable & replaceable.

OME NITROCHARGER SHOCK ABSORBERS

ARB designed the frame and the suspension first for the Earth Camper with the rest built around it, making it truly built for purpose. The advantages of a vertically oriented shock absorber allow the shock to achieve 100% efficiency as any movement at the axle reflects directly over the shock.

120W SOLAR PANEL

Coming standard with a 120W roof mounted solar panel, you can charge your Earth Camper whenever you are off grid.

ARB BASE RACK

Topped by a 1255x1455 ARB BASE Rack, enables seamless cargo carrying solutions to the roof of your Earth Camper and is compatible with all the existing range of BASE Rack accessories.

FRONT BOOT STORAGE

Front boot space is incredibly roomy, offering generous space to pack your more readily accessed cargo. The front boot area has a dedicated cavity for the Earth Camper 'Essentials Kit' incl. user manual, wheel brace, spares, awning guy ropes and pegs etc.

FIBREGLASS REINFORCED POLYMER BODY

The Earth Camper's body has been engineered to be both tough and lightweight.

140L WATER STORAGE

With two separate 70L water-tanks (140L joined in parallel), the Earth Camper can handle as much water as you'll need on your adventures.

REDARC BATTERY MANAGEMENT SYSTEM

REDARC Manager 30 battery management system comes included as standard. Controlled via a user-friendly in cabin interface, ensures peace of mind the electrics are well managed.

REDARC BATTERY MANAGEMENT SYSTEM

REDARC Manager 30 battery management system comes included as standard. Controlled via a user-friendly in cabin interface, ensures peace of mind the electrics are well managed.

100AH CENTURY LITHIUM BATTERY

Powered by a huge 100AH Century Lithium Battery included as standard, the Earth Camper will have you powered for longer.

UNDER BED STORAGE DRAWER

Keep your clothing easily accessible, with the large underbed storage drawer fitted with anti-rollback to promote stability. Collapsible table can be stored here.

OVERHEAD STORAGE

Four large overhead pockets store any additional bedroom items that you may need during the night, secured by an elastic mesh.

BEDHEAD STORAGE

Equipped with a large cargo organiser, kitted out with ten pockets for easily accessed storage.

QUEEN SIZED BED

Equipped with a comfortable, full queen-sized bed, you’ll be sure to get a good night’s sleep on the high density, 150mm thick foam mattress.

BLACKOUT CURTAINS

Pleated side blackout curtains have been included to shut out any external light.

INCREASED VENTILATION

With limitless 360° direction capability, and also multi-speed settings, these two Sirocco 12v fans will be welcomed when you’re getting your hard-earned rest.

INTERNAL ACCESS DOOR

Separate the inner sleeping area from the outside, meaning no wet/dirty canvas is near the bed. The door is lockable from the inside and features a multi stage catch, allowing it to be cracked open for better ventilation.

LIGHTING (Internal, Bedside & Area)

Keep the camper well lit for those dark outback nights, with abundant internal lighting; including roof, bedside and living room area lighting.

SIDEWALL AND BEDSIDE STORAGE

Earth Camper’s side walls are dressed with even more cargo organiser’s, offering two pockets per side. Generous dual bedside storage pockets, with a drink bottle holder per side, ensures essentials are secured.

*PRE-PRODUCTION MODEL SHOWN

Chassis

One-Piece Welded Exoskeleton

One-Piece Welded Exoskeleton

Patented one-piece welded exoskeleton frame for superior strength over traditional RHS chassis.

With 90mm cylindrical, mandrel bent steel with a 3mm wall thickness, the Earth Camper’s exoskeleton is designed to keep the body safe.

Multi-Layer Coated

Multi-Layer Coated

The exoskeleton itself has been multi-level coated, starting with a tank dipped automotive e-coat, and finished with a double layered, polyurethane (PU) stone resistant coating.

Embossed From Body

Embossed From Body

Being embossed from the body of the Earth Camper itself, the exoskeleton provides rugged, roll cage-like protection to the body.

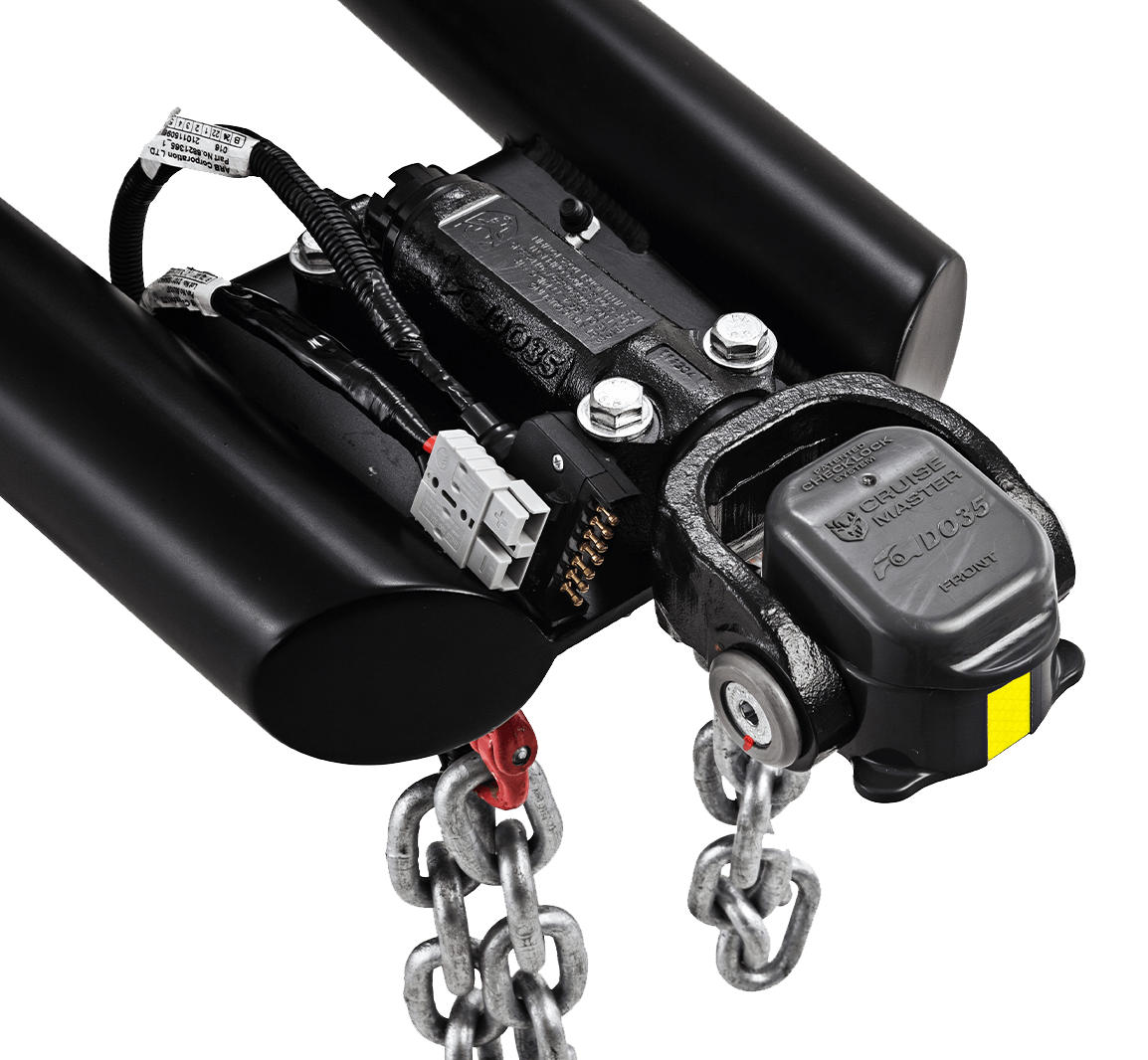

Cruisemaster Hitch & Handbrake

Cruisemaster Hitch & Handbrake

The Cruisemaster Hitch & Handbrake equipped to the Earth Camper makes setting, equipping and detaching your home a seamless task.

Suspension & Mechanical

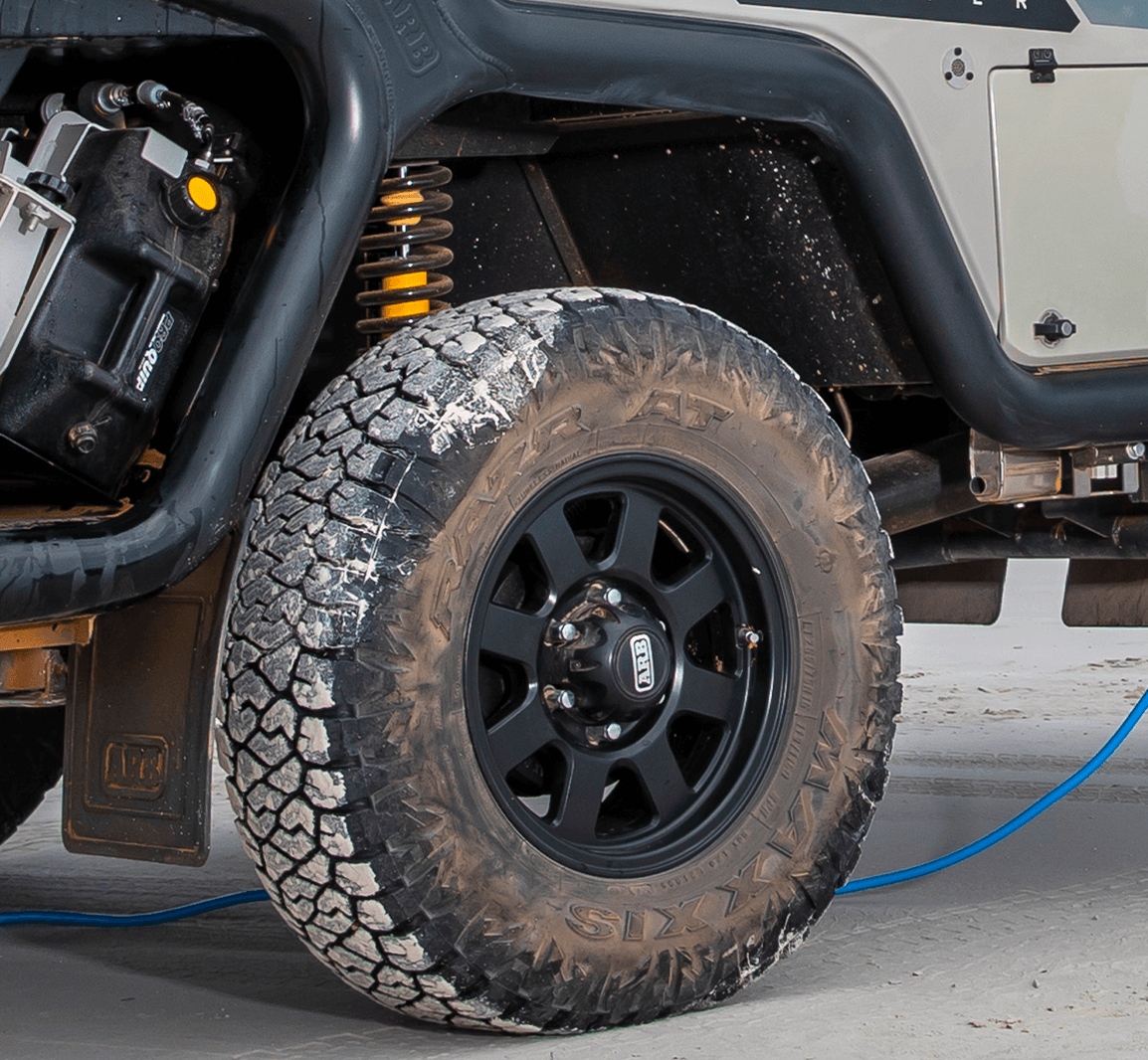

900mm Extra-Long Trailing Arm

900mm Extra-Long Trailing Arm

By maximising the length of each trailing arm to 900mm, our engineers were able to reduce strain on suspension components, extract greater wheel travel and ultimately provide a smoother ride and better traction.

Vertically Orientated Shock Absorber

Vertically Orientated Shock Absorber

Installing the Nitrocharger shocks, and positioning them correctly in the Earth Camper, were key to ensuring a reliable and long-lasting suspension solution. Our suspension engineering team modelled the shock absorber design off a Ranger and LC200 strut, then tuned it to suit the trailer’s unique weight and ride handling characteristics.

The natural advantages of a vertically oriented shock absorber allow the shock to achieve 100% efficiency as any movement at the axle reflects directly on the shock.

All Terrain Tyres & Alloy Wheels

All Terrain Tyres & Alloy Wheels

With the special ARB ‘EC’ edition 16” alloy wheels wrapped in Maxxis Razr All Terrain tyres, the Earth Camper is set on a premium set of rims and tyres.

12” Electric Brakes

12” Electric Brakes

Backed by 12” electric brakes, and having a wheel brace, bottle jack, spare center cap etc. included, you can rely on the foundation of the Camper Trailer going the distance and keeping you on track.

Body & Shelter

Fibreglass Reinforced Polymer (FRP)

Fibreglass Reinforced Polymer (FRP)

With a 100% wood free design, the Earth Camper’s body has been engineered to be both tough and lightweight.

With durable and repairable fibreglass reinforced polymer (FRP) and expert construction using RTM & HLU processes, the camper has been designed for adventurers.

Insulated Design

Insulated Design

Being well insulated for the keen adventurer, the Earth Camper’s walls & roof are 25mm thick and packed with 20mm foam core.

Along with this, the internal bulkhead is 30mm foam core cladded, and the interior comes complete with ARB’s dust suppression system, equipped with serviceable filters.

Opening Side Window & Flyscreen

Opening Side Window & Flyscreen

Ventilation to your sleeping space is as easy as a push, with an opening side window protected by a flyscreen for any unwanted insect intruders.

Freestanding Awning

Freestanding Awning

Equipped with a freestanding ARB Awning, have constant protection from the elements when on your adventures.

With poles included for wind and overnight use, the ARB Awning also includes an inbuilt LED ambient light for those late nights and internal awning housing to eliminate catching low hanging obstacles off road.

Electrical

Rear Door

Rear Door

Via the push of a button, get into bed in less than 1 min! After a long day on the road or unfavourable weather, quick access to your sleeping quarters is paramount, and the Earth Camper delivers via it’s bespoke rear door design.

With extensive testing, the Earth Camper rear door design provides an innovative & robust entry to the inside of the camper.

REDARC Battery Management System

REDARC Battery Management System

Extending ARB & REDARC’s relationship into the Earth Camper, a REDARC Manager 30 battery management system (BMS) comes included as standard.

Controlled via a user-friendly in-cabin interface, have peace of mind the electrics are well managed.

100AH Lithium Battery

100AH Lithium Battery

Powered by a huge 100AH Lithium Battery included as standard, the Earth Camper will have you powered for longer.

With a massive 374x334mm battery tray, there’s provision for an additional to provide a dual setup. The tray space allows fitting up to 2x 100AH Lithium Batteries! (available via additional accessories).

120W Solar Panel

120W Solar Panel

Charging the Earth Camper off grid has been thought through, coming standard with a 120w roof mounted solar panel.

This is further supported with an external mounted Anderson plug for additional solar input via fold out panels sold as accessories.

Kitchen & Water

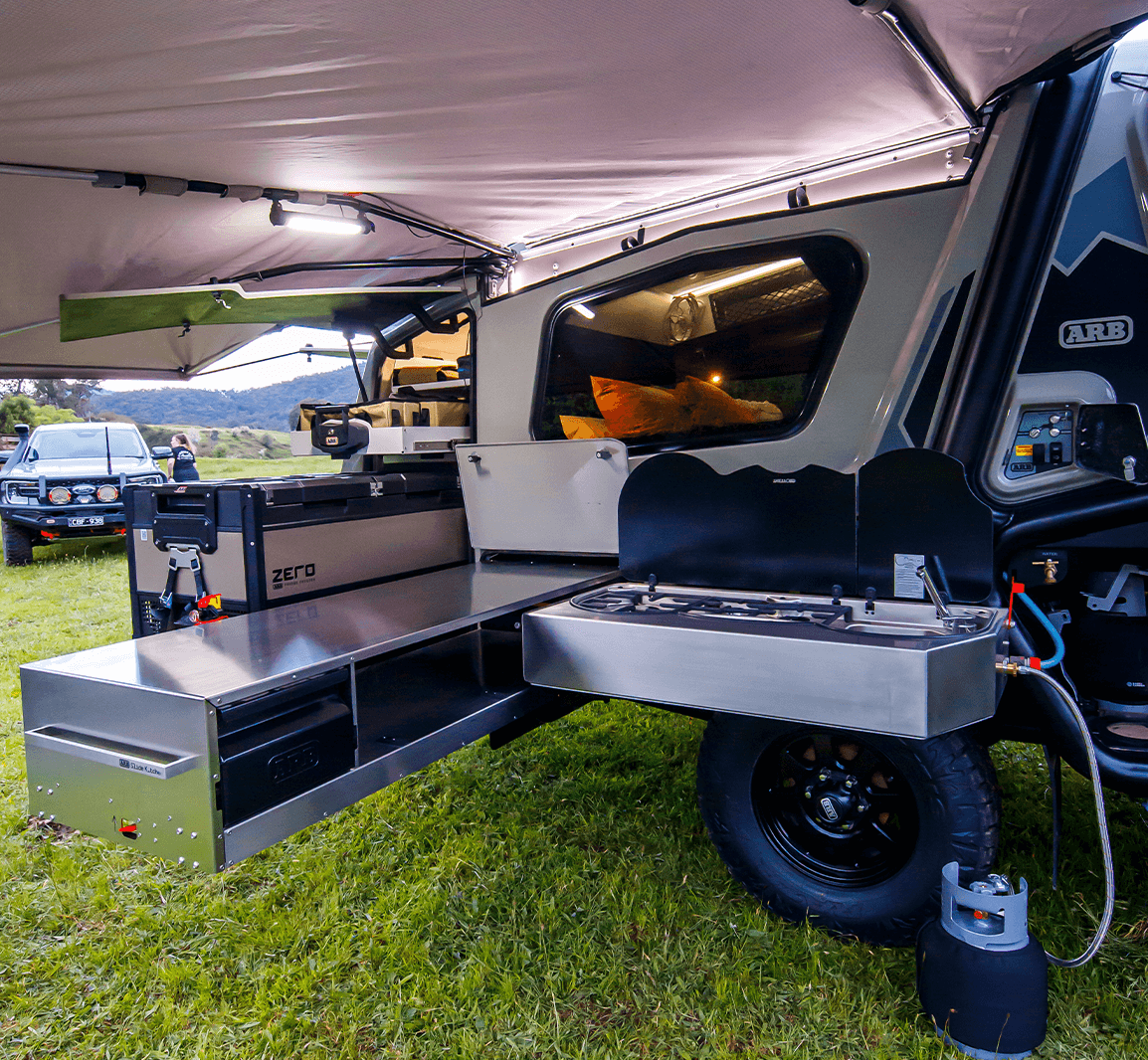

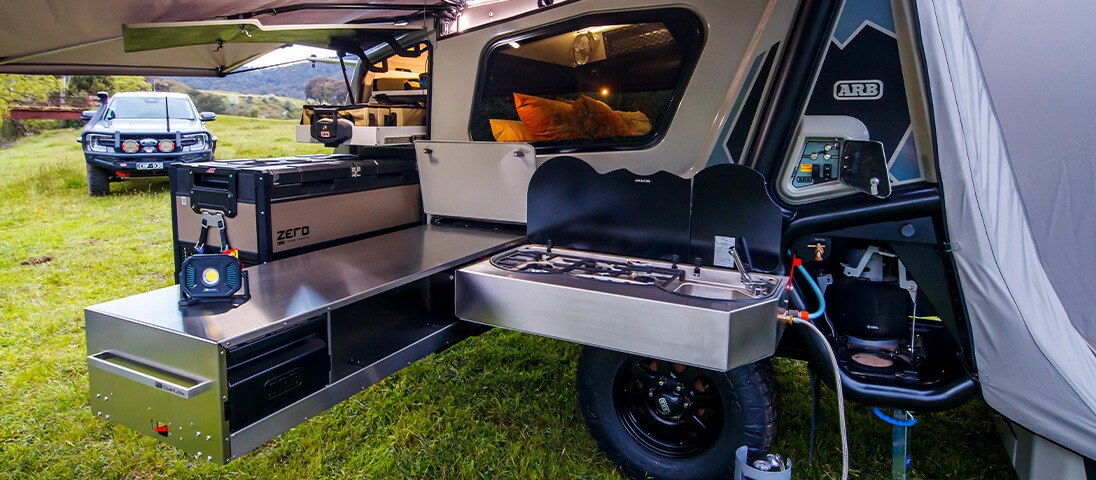

ARB Slide Kitchen

ARB Slide Kitchen

ARB Patented, full size & freestanding Slide Kitchen comes equipped with a huge stainless steel bench space which remains available while cooking, as well as a 3-burner cooktop with included wind deflector and an integrated sink with tap.

Large Bench Space

Large Bench Space

Prepare your meals with ease with the convenience of ARB’s Slide Kitchen’s massive stainless steel bench top.

Coming in at a spacious 1450mm x 525mm, the bench space can be utilised no matter how big the meal you’re cooking up.

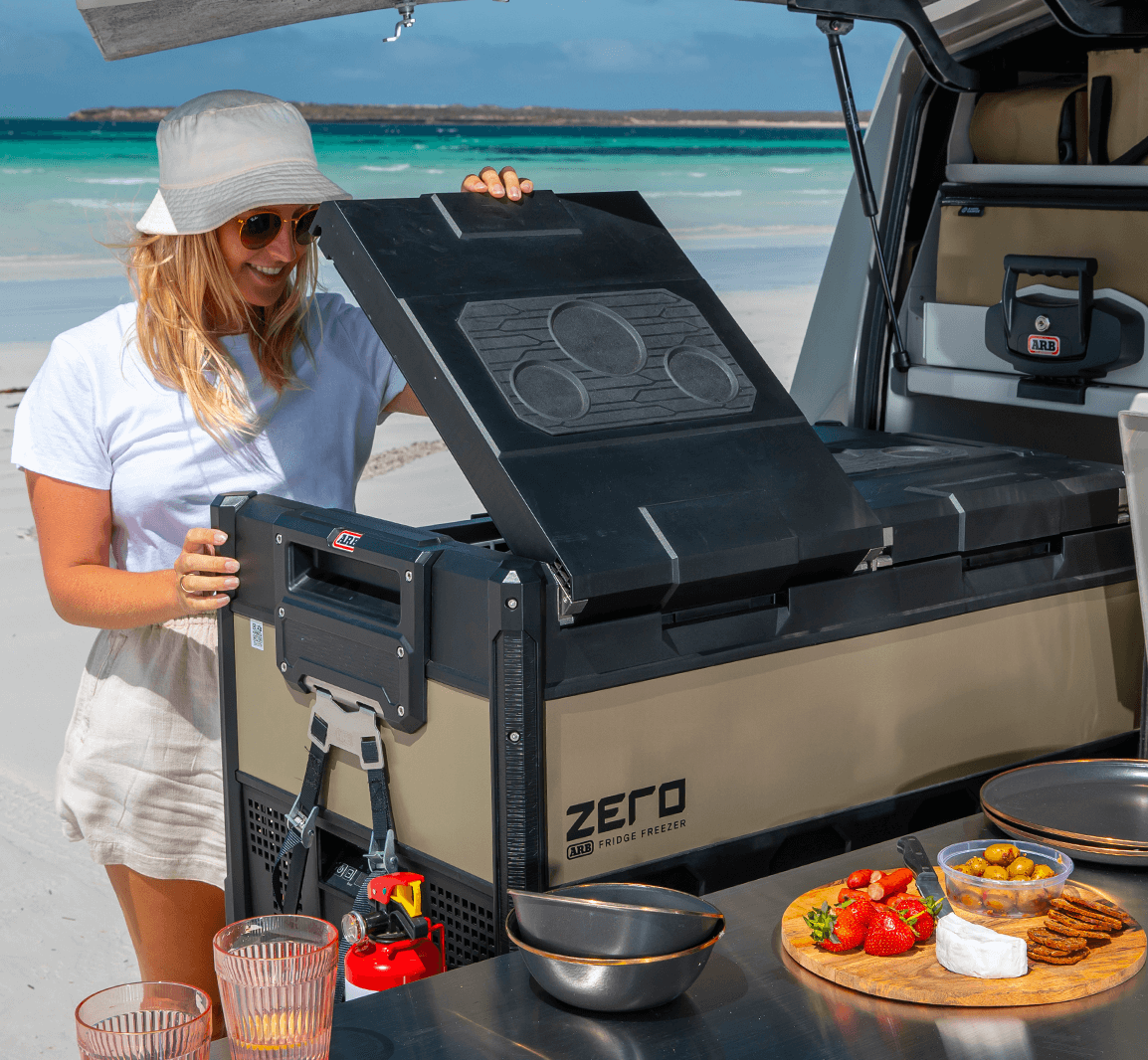

96L ARB Zero Fridge/Freezer

96L ARB Zero Fridge/Freezer

Included as standard is a giant 96L ARB ZERO dual zone fridge/freezer, ensuring your supplies on the road are kept cool and secure.

Complete with tie downs and a full extension lockout fridge slide with ARB cable run to ensure a clean, tucked away and seamless fridge integration.

140L Dual Water Tanks

140L Dual Water Tanks

With two separate 70-litre water tanks (140L joined in parallel), the Earth Camper can handle as much water storage as you’ll need on your adventures.

The tanks are centrally mounted over the axle to provide optimal weight distribution. Coming complete with a lockable water fill point and external tap outlet (in addition to kitchen), as well as a 3.0-11.3LPM onboard water pump and a digital water level indicator, you’ll always know how much water you’re carrying.

An additional 40L can be carried through the 2x jerry can holders.

Storage

ARB BASE Rack

ARB BASE Rack

Topped by a 1255×1455 ARB BASE roof rack, this is a great place to house recovery boards, kayaks/surfboards, additional solar panels or even some swags providing extra sleeping quarters for the whole family.

Packed with expert engineering, the ARB BASE Rack enables seamless cargo carrying solutions to the roof of your Earth Camper and is compatible with all the existing range of BASE Rack accessories.

Rear Storage Locker

Rear Storage Locker

Spacious, lockable rear wet storage locker.

Perfect for spare parts, tools, wetsuits, or even firewood.

Dual Jerry Can & Gas Bottle Storage

Dual Jerry Can & Gas Bottle Storage

Ensure you’re always good for fuel or water when taking on the tracks with provision for two 20L jerry cans, that are also lockable to ensure your jerry cans are fixed.

Earth Camper also includes a section to store your gas bottle on the road, keeping your stove and heaters going.

Versatile Drawbar Accessory Rails

Versatile Drawbar Accessory Rails

The drawbar of the Earth Camper has been designed by campers, for campers. Incorporating accessory mounting rails to utilize otherwise untapped space, the drawbar comes complete with a Cruisemaster D035 hitch & handbrake, ARK XO extreme off road jockey wheel rated to 500kgs, 3500kg rated safety chain & G80 connector, as well as two ARK drop down stabiliser legs at the rear of the chassis.

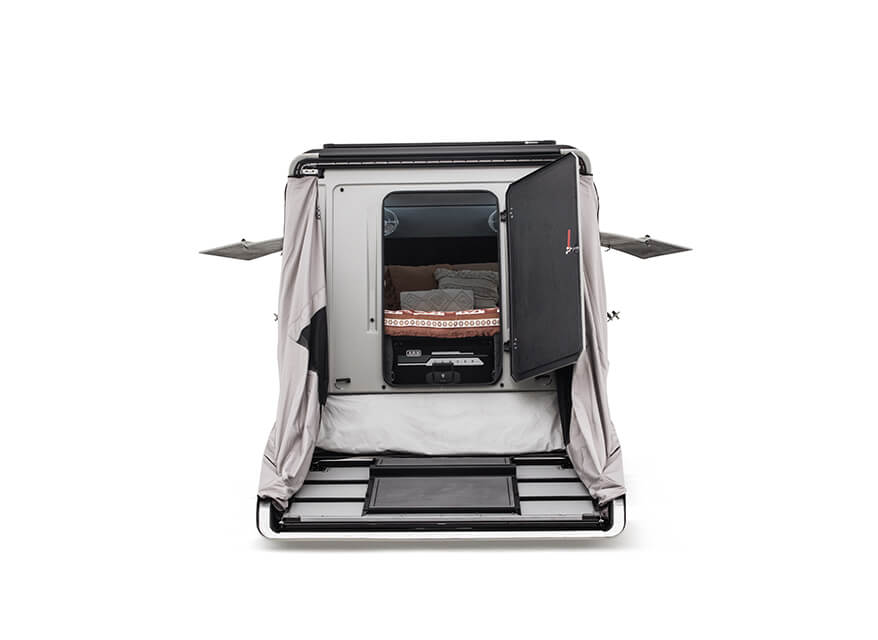

Interior

Spacy Interior

Spacy Interior

With living at the forefront of our designers’ minds, the Earth Camper comes with an expansive internal bedroom & living space.

With an impressive 1000mm internal head height (from the top of mattress to the ceiling), the Earth Camper’s internal living feels quite comfortable & spacious, not what you may have expected from a compact unit of its size.

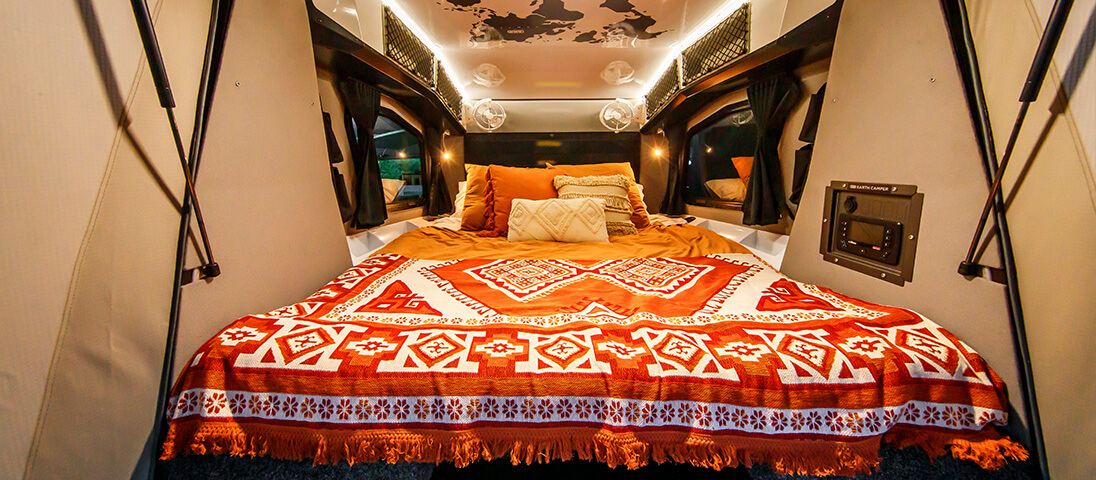

Queen-Sized Bed

Queen-Sized Bed

Sleeping on the road has never looked so good. Coming equipped with a comfortable, full queen-sized bed, you’ll be sure to get a good night’s sleep on the high density, 150mm thick foam mattress.

Dual Sirocco Fans

Dual Sirocco Fans

Stay cool on those hot summer nights in your Earth Camper at the switch of a button, with two Sirocco 12v fans.

With limitless 360° direction capability, and also multi-speed settings, these Sirocco fans will be welcomed when you’re getting your hard-earned rest.

Collapsible Dining Table

Collapsible Dining Table

Dinner time or life admin made easy with a flip out internal table providing an internal bench space protected from the elements.

Collapsible into the underbed draw for easy storage, the folding table provides a practical bench space for various applications.

FEATURES AND BENEFITS

  • Chassis

    • Patented one-piece welded exoskeleton frame for superior strength over traditional RHS chassis
    • 90mm cylindrical, mandrel bent steel with a 3mm wall thickness
    • Multi-level coated, with tank dipped automotive e-coat and double layered, polyurethane (PU) stone resistant coating
    • Embossed from body, providing rugged, roll cage like protection
    • 4x welded on jacking points – 2 per side
    • Drawbar accessory mounting rails
    • Under Vehicle Protection for Camper (replaceable)
    • Cruisemaster D035 hitch & handbrake
    • 3500kg rated safety chain & G80 connector
    • ARK XO extreme off road jockey wheel (500kg rated)
    • Front stone shield
    • Underslung mud flap & stone shield
    • ARB mudflaps
    • 2x ARK drop down stabiliser legs
  • Suspension & Mechanical

    • Patented 3-part, comprehensive independent suspension system, integrated with the Earth Camper’s exoskeleton chassis
    • 900mm extra-long trailing arm
    • Vertically orientated shock absorber
    • Coil-over strut design, Old Man Emu Nitrocharger shock absorber
    • Maxxis Razr All Terrain tyres (Inc. spare) 265/75/R16
    • ARB ‘EC’ edition alloy wheels (Inc. spare) 16×7.5 +20
    • 12” electric brakes
    • 6 x 139.7 LandCruiser/Hilux style wheel hub (interchangeable)
    • Timken bearings (Inc. spare)
    • Wheel brace, bottle jack, spare center cap etc. included
    • Mechanical components intentionally incorporate industry standard selections to simplify finding replacements in remote areas if necessary
  • Body & Shelter

    • 100% wood free design
    • Durable & repairable fibreglass reinforced polymer (FRP) construction using RTM & HLU processes
    • Well insulated for the keen adventurer, with walls & roof 25mm thick with 20mm foam core and internal bulkhead 30mm foam core cladded
    • Opening side window & flyscreen
    • ARB dust suppression system (with serviceable filters)
    • Durable gelcoat integrated colour, cool grey (PMS415C)
    • Lockable compression latches
    • Gas strut or friction hinge assisted panel opening
    • Freestanding Awning (calm conditions) with poles included for wind & overnight use
    • Internal awning housing to eliminate catching low hanging obstacles off road
    • Inbuilt LED ambient awning light
    • Includes awning extension to rear canvas
    • 280GSM poly-cotton ripstop canvas
    • Awning Wind Breaks available
  • Electrical

    • Push button, electronically dual-actuated rear door <1min
    • REDARC Manager 30 battery management system (BMS)
    • Huge 100AH Lithium Battery
    • 120w roof mounted solar panel
    • External mounted Anderson plug solar input
    • 7 pin flat trailer socket & Anderson in
    • 4x side clearance lights
    • IP68 rated tail, brake, indicator, lights
    • 240v mains power provision, with dual internal GPO outlets, main RCD & dual GPO outlet in front locker and external mounted 240v/15A inlet
    • Pantry 12v; voltmeter, cig & USB socket
    • Internal 12v; 2x USB-C, 6x USB
    • Provision for REDARC inverters 350-2000w
    • Dual temp & dimmable gullwing door lighting
    • Front & rear automatic sensor lighting
  • Kitchen & Water

    • ARB Patented, full size & freestanding Slide Kitchen
    • Huge SS bench space which remains available while cooking
    • 3 burner cooktop & integrated sink with SS tap
    • Stove wind deflector included
    • Giant 96L ARB ZERO dual zone fridge/freezer & tie downs
    • Spacious cutlery draw
    • Full extension lockout fridge slide w/ ARB cable run
    • 1kg ABE dry fire extinguisher
    • Sliding, lockable pantry draw & top shelf
    • 2x separate 70-liter water tanks (140L joined in parallel)
    • Centrally mounted tanks over axle for optimal weight distribution
    • Digital water level indicator & 3.0-11.3LPM onboard water pump
    • Lockable water fill point
    • External tap outlet (in addition to kitchen)
    • 2x 4.5kg gas bottles (included)
    • Neoprene ‘EC edition’ gas bottle covers
    • Lockable gas bottle holder
    • Tailor fit storage bags available
  • Storage

    Unique storage compartments incorporated in each region & tailor fit cargo gear bags available for extended remote area travel (see accessories)

    External

    • 1255×1455 ARB BASE roof rack (compatible with accessories)
    • Rear wet storage locker
    • Provision for 2x 20L jerry cans (lockable)
    • Roof storage compartment (if not equipped with Ensuite Room)
    • Drawbar accessory rails – provision for drawbar storage



    Internal

    • Spacious front boot & essentials kit bag
    • Spare tyre storage compartment forms cassette toilet storage (when used with drawbar storage kit)
    • Large underbed storage draw with anti-rollback
    • Under draw custom storage bag
    • 4x large overhead pockets
    • Bedhead cargo organiser – 10 pockets
    • Side wall cargo organiser’s – 2 per side
    • Generous bedside storage pockets – 2 per side
  • Interior

    • Expansive internal bedroom & living space with impressive 1500mm internal head height (top of mattress – ceiling)
    • Comfortable, full queen-sized bed
    • High density, 150mm thick foam mattress
    • Pleated side blackout curtains
    • Wind out, opening side window & (removable) flyscreen
    • ‘EC’ edition world map on roof to track your adventures
    • 2x Sirocco 12v fans – 360° direction & multi-speed
    • Flip out internal dining table – connected to draw
    • 2x internal draw storage tray organisers
    • Durable & replaceable EVA foam flooring on key step zones
    • Textured powdercoat main floor for durability & easy cleaning
    • Internally lockable internal access door with premium RTM fiberglass finish
    • Abundant internal lighting; ambient roof lighting, 2x bedside reading lights & living room area light
    • Loaded with tech; 2x bedside USB-C phone charging points, 6x USB sockets, 2x 240v GPO’s & internal REDARC control panel
top
